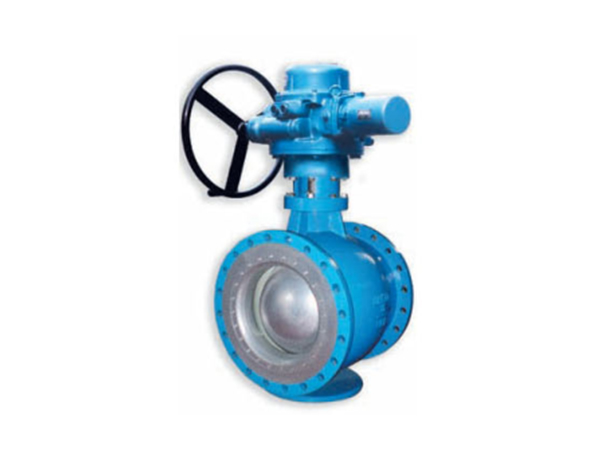

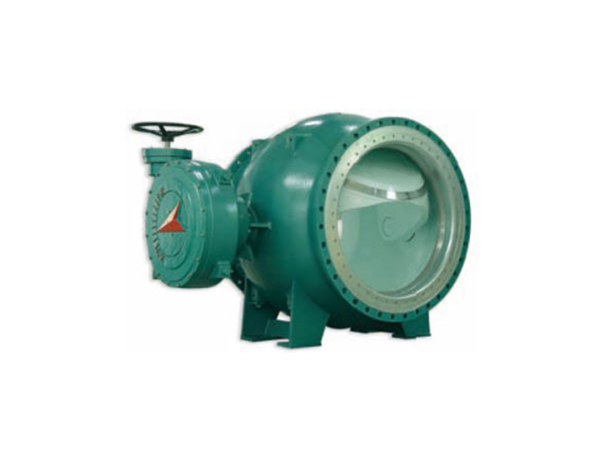

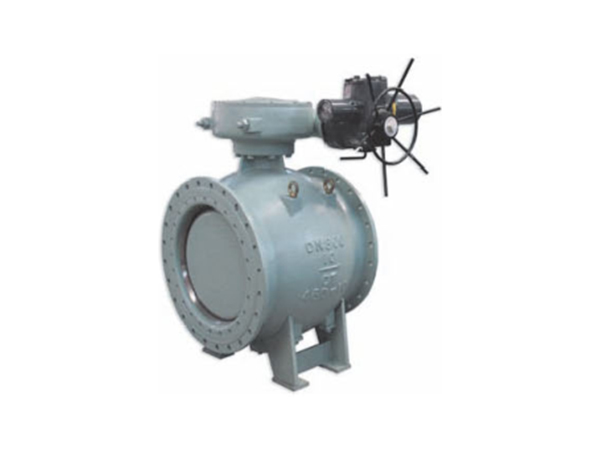

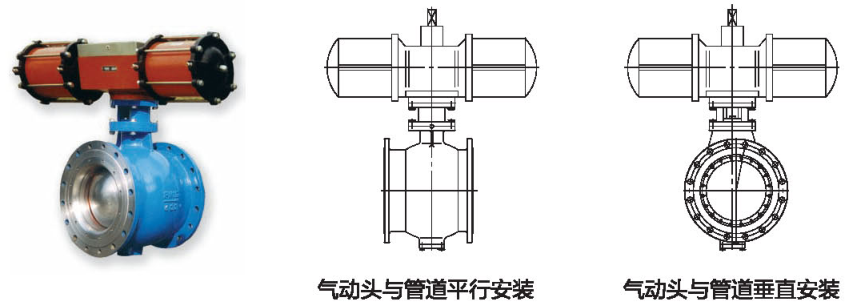

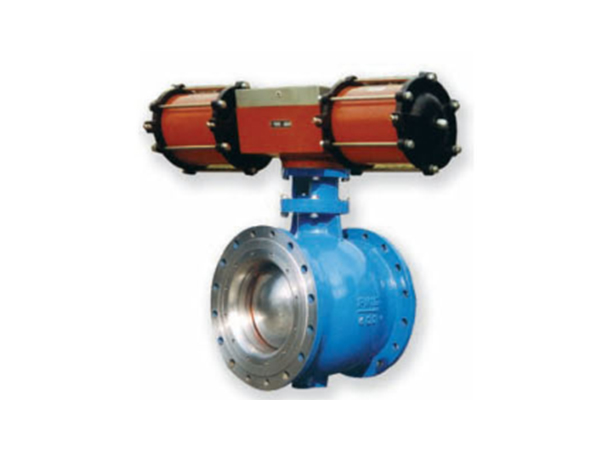

Welded eccentric half ball valve

Overview: A new type of valve, with small size, light weight, flexible and convenient operation, widely used in chemical, petroleum, pharmaceutical and other production departments. Its design features include small size, light weight, flexible and convenient operation, suitable for nominal pressurePNThe water-gas-oil pipeline system and other pipelines in the oil and gas industry with ≤ 16MPa are used as regulating and intercepting devices.

Note: 1. The specifications {DN100-DN1600} listed in the table below are all products produced by our unit. If customers have special specifications, we can also meet the requirements. 2. The dimensions of standing feet listed in the table below are suitable for vertical installation or horizontal installation. The ball valve below DNGO0 produced by our factory is not equipped with standing feet. If the user needs to configure the foot, please indicate in the order contract. 3, for the existence of the valve axial displacement or the need for the valve axial displacement of the pipeline, the valve is best not with standing feet, or with standing feet without the use of anchor bolts, in order to prevent the valve fixed and damaged.

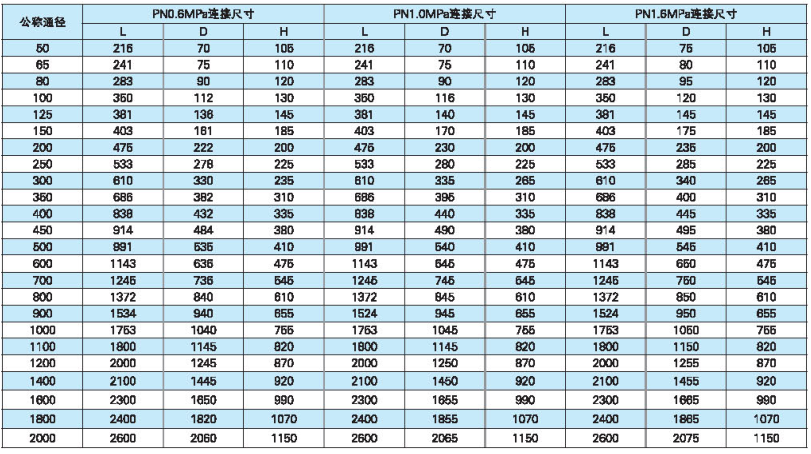

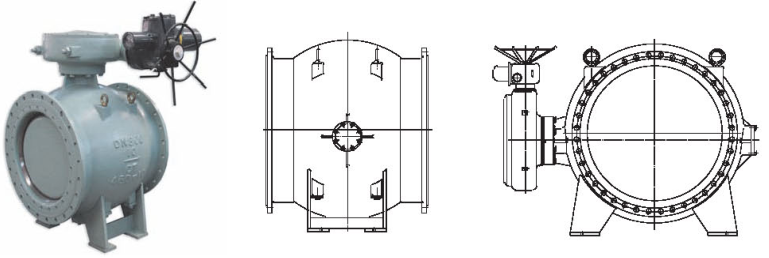

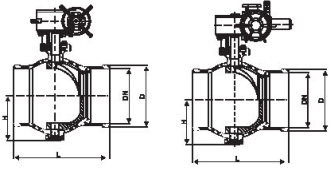

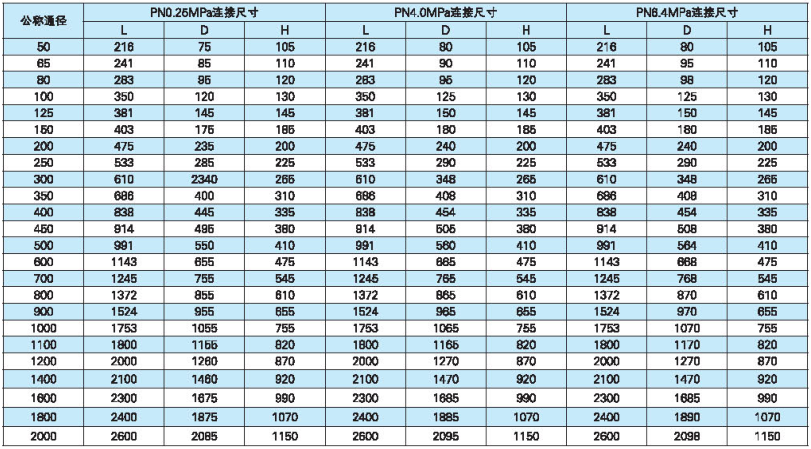

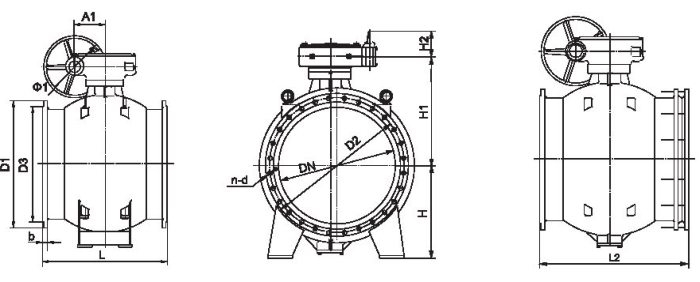

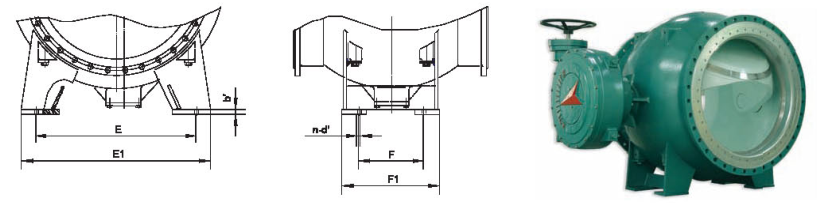

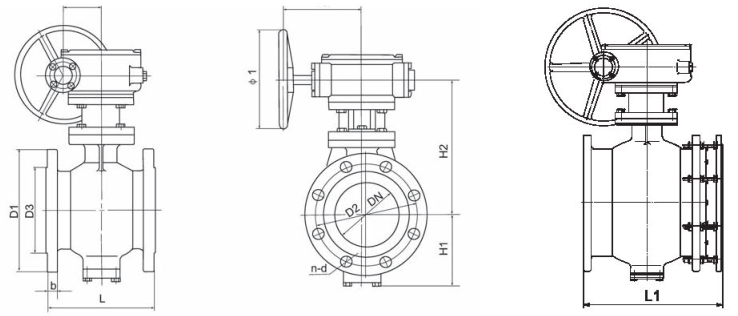

Main Outline Dimensions and Connection Dimensions

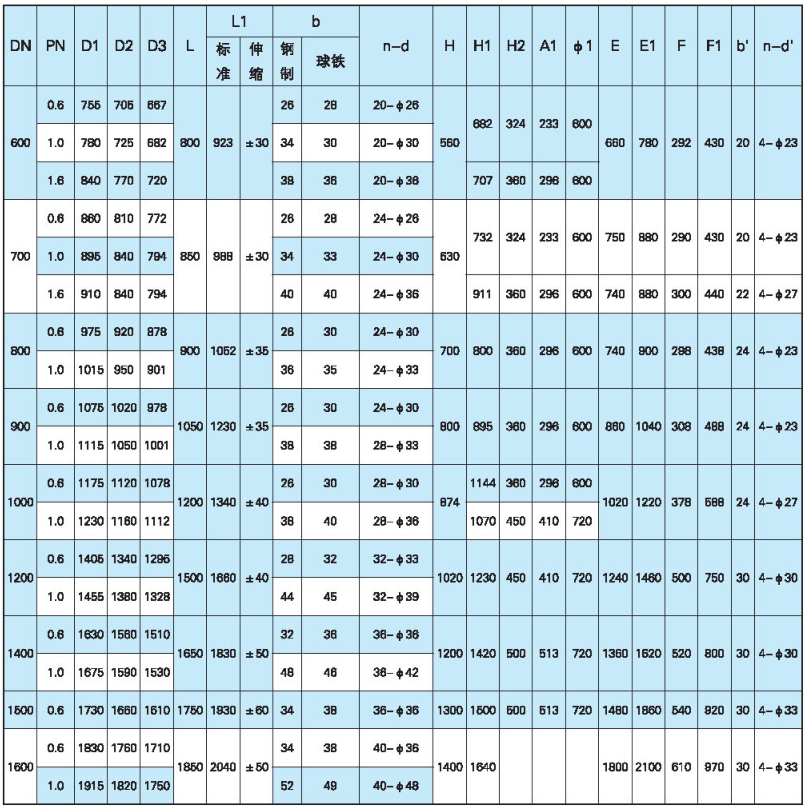

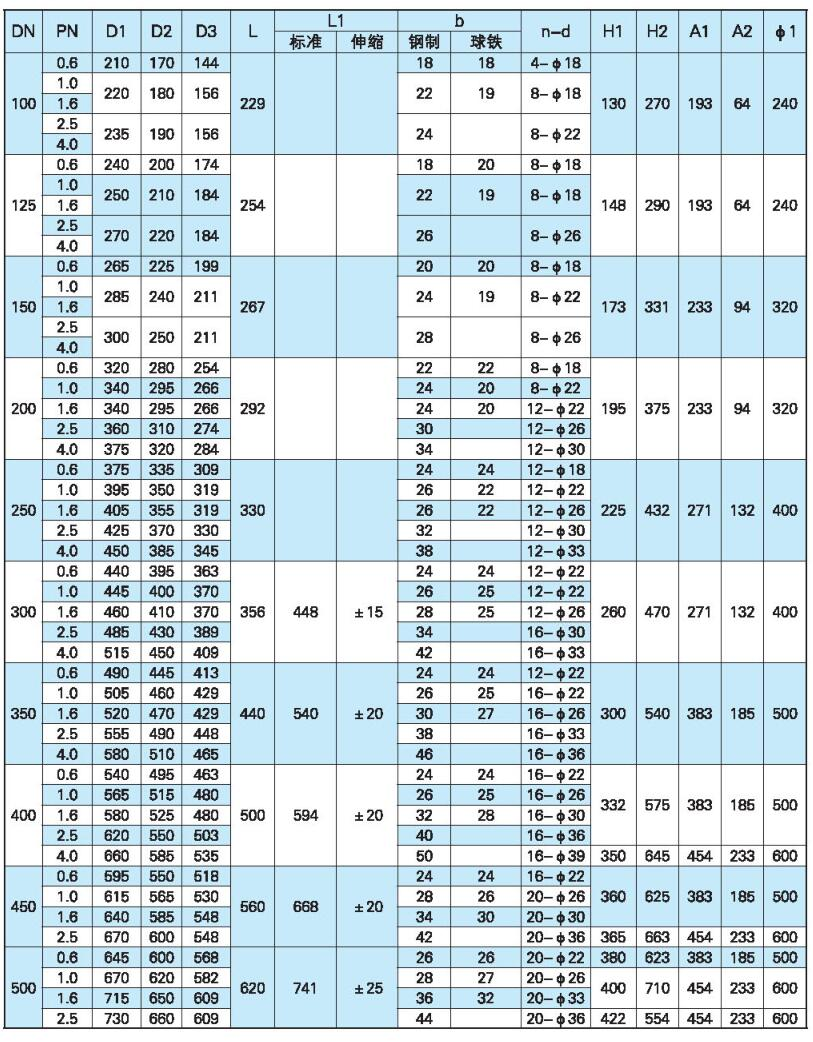

Specifications shape DN100 ~ 500



worm gear drive



Part-turn electric device



Size DN100 ~ 500





Specifications shape DN600 ~ 1600



worm gear drive



Multi-turn electric device



Size DN600 ~ 1600



Note:

1. The specifications {DN100-DN1600} listed in the table are all mass-produced products of our unit. If customers have special specifications, we can also meet the requirements.

2. The dimensions of standing feet listed in the table are suitable for vertical installation or horizontal installation. The ball valve below DNGO0 produced by our factory is not equipped with standing feet. If the user needs to configure the foot, please indicate in the order contract.

3, for the existence of the valve axial displacement or the need for the valve axial displacement of the pipeline, the valve is best not with standing feet, or with standing feet without the use of anchor bolts, in order to prevent the valve fixed and damaged.
