Heating gas fully welded fixed ball valve Q367F(H)-10/25 DN500-1200

Heating gas fully welded fixed ball valve Q367F(H)-10/25 DN500-1200

1. Scope of application: heating system, district heating, industrial use, city gas, urban water supply. 2. Medium: water, air, oil and other fluids that do not chemically react with carbon steel. 3. Applicable temperature: Q367F type maximum applicable temperature: ≤ 200 ℃;Q367H type maximum applicable temperature: ≤ 250 ℃









1. Scope of application

Heating systems, district heating, industrial use, city gas, town water supply.



2. Medium

Water, air, oil and other fluids that do not react with carbon steel.



3. Applicable temperature

Q367F type maximum applicable temperature: ≤ 200 ℃

Q367H type maximum applicable temperature: ≤ 250 ℃

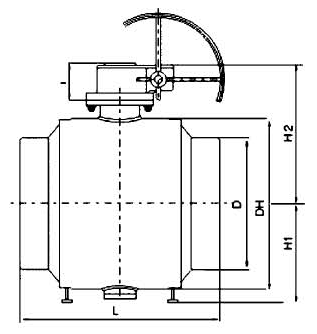

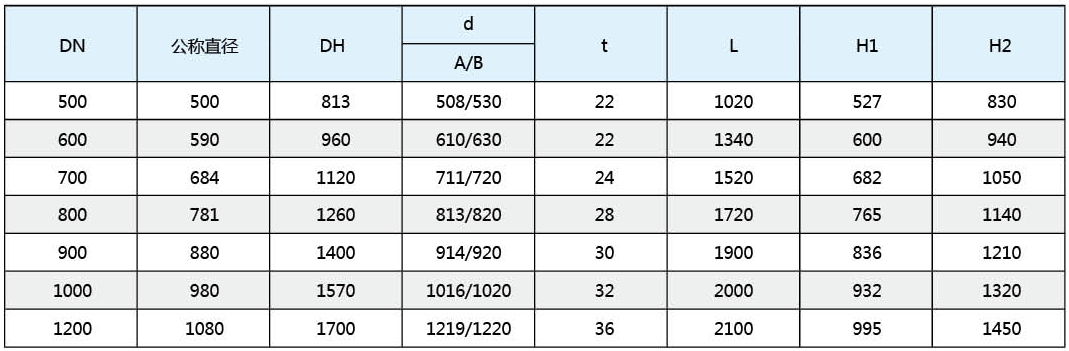

4. Main connection dimensions
