H44X Rubber Check Valve

Product overview

H44X(SFCV) series rubber flap check valve parts design is mainly composed of valve body, valve cover and rubber flap three main parts. The rubber flap in the valve is made of steel plate and steel rod for long switch life. H44X(SFCV) series rubber flap check valve adopts full flow area design, with small head loss and not easy to accumulate debris. Easy maintenance and other characteristics.

The H44(SFCV) series rubber dance check valve produced by our company is mainly applicable to the water supply and drainage system with dry horizontal installation and can be installed at the water outlet of the water pump to prevent back flow and water hammer damage to the pump. The valve can also be installed on the bypass pipe of the water inlet and outlet pipes of the reservoir to prevent the backflow of the pool water into the water supply system.

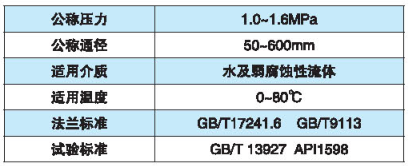

Main technical parameters

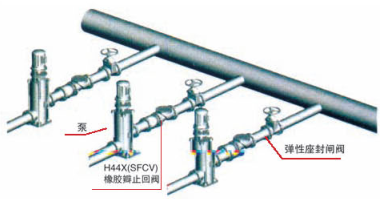

Installation Schematic



Main Parts and Components Materials

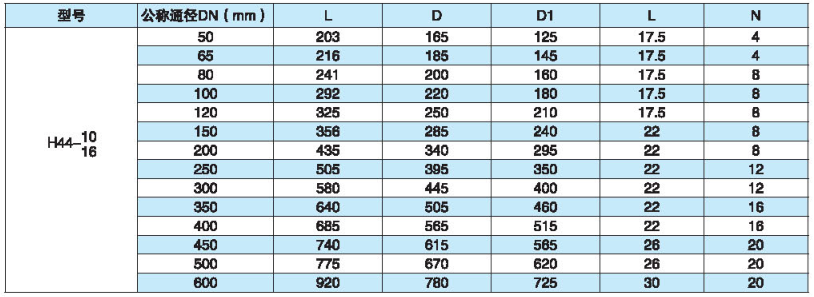

Main connection dimensions unit: mm
