Heating worm gear floating all-welded ball valve

Heating worm gear floating fully welded ball valve Q361F(H)-25 DN125-600

1. Scope of application: heating system, district heating, industrial use, city gas. 2. Medium: water, air, oil and other fluids that do not chemically react with carbon steel. 3. Applicable temperature: Q361F type maximum applicable temperature: ≤ 200 ℃;Q361H type maximum applicable temperature: ≤ 300 ℃





1. Scope of application

Heating systems, district heating, industrial use, city gas.



2. Medium

Water, air, oil and other fluids that do not react with carbon steel.



3. Applicable temperature

Q361F type maximum applicable temperature: ≤ 200 ℃

Q361H type maximum applicable temperature: ≤ 300 ℃



4. According to the standard requirements, products with specifications above DN250 do not provide handles, and the following additional accessories can be ordered:

Movable gear actuator;

Manual gear actuator;

Electric gear actuator;

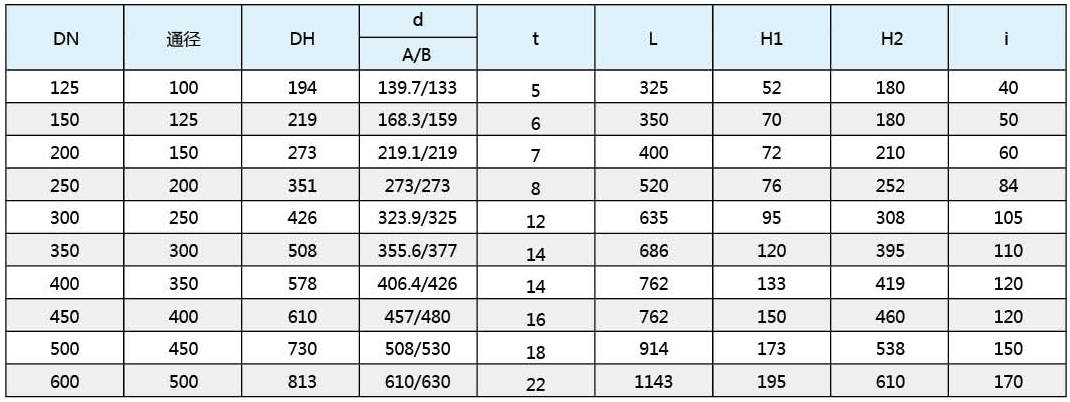

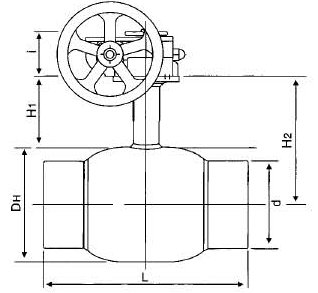

5. Main connection dimensions
