Top-mounted eccentric half ball valve

Top-mounted eccentric half ball valve

Product features: 1. Small pressure loss: when fully open, the water loss is zero, the flow channel is completely unblocked, and the medium will not be deposited in the valve body cavity. 2, resistance to particle wear: V-shaped opening of the ball cap and the metal valve seat between the shear, in the closing process. Only at the last moment does the ball cap lean against the valve seat without friction. And the valve seat is made of wear-resistant nickel alloy, which is not easy to be washed and worn, so it is suitable for fiber, small solid particles, mud, etc. 3. Suitable for high flow rate media: straight-through flow channel, strong eccentric-crankshaft makes it suitable for high flow rate and no vibration.





Product Features

1. Small pressure loss: when fully open, the water loss is zero, the flow channel is completely unblocked, and the medium will not be deposited in the valve body cavity.

2, resistance to particle wear: V-shaped opening of the ball cap and the metal valve seat between the shear, in the closing process. Only at the last moment does the ball crown lean against the valve seat without friction. And the valve seat is made of wear-resistant nickel alloy, which is not easy to be washed and worn, so it is suitable for fiber, small solid particles, mud, etc.

3. Suitable for high flow rate media: straight-through flow channel, strong eccentric-crankshaft makes it suitable for high flow rate and no vibration.

4, long life: no vulnerable parts, due to the eccentric effect, the valve opening and closing when the sealing surface without friction. The service life is long.

5, easy maintenance: the valve maintenance does not need to be removed from the pipeline, as long as the valve cover can be opened for maintenance.

6, widely used in water, sewage, containing small solid particles, steam, gas, natural gas, oil and so on.

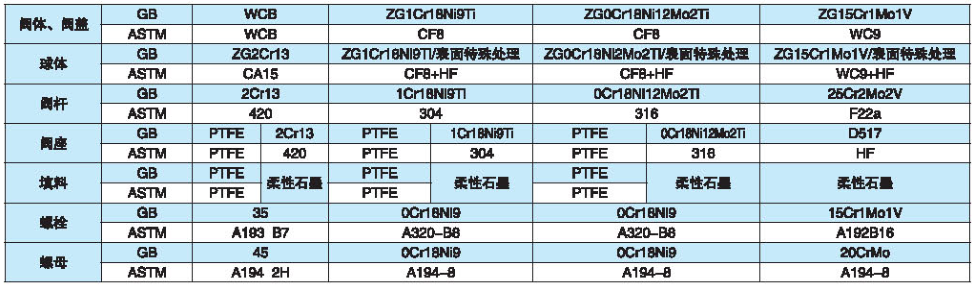

Main Parts and Components Materials

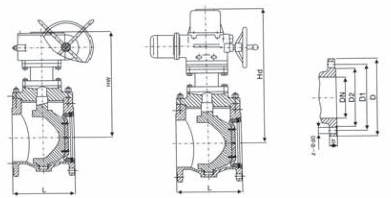

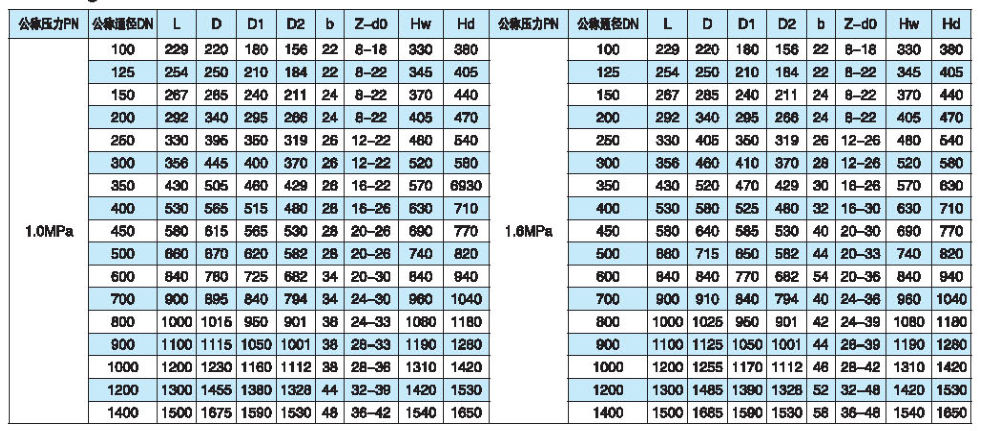

Main connection dimensions
