Long rod directly buried welded ball valve Q361F(H)-25 DN50-600

Long rod directly buried welded ball valve Q361F(H)-25 DN50-600

1. Scope of application: district heating, refrigeration and heating system, city gas. 2. Medium: water, air, oil and other fluids that do not chemically react with carbon steel. 3. Applicable temperature: Q361F type maximum applicable temperature: ≤ 200 ℃;Q361H type maximum applicable temperature: ≤ 300 ℃



Product Description





1. Scope of application

District heating, cooling and heating systems, city gas.



2. Medium

Water, air, oil and other fluids that do not react with carbon steel.



3. Applicable temperature

Q361F type maximum applicable temperature: ≤ 200 ℃

Q361H type maximum applicable temperature: ≤ 300 ℃

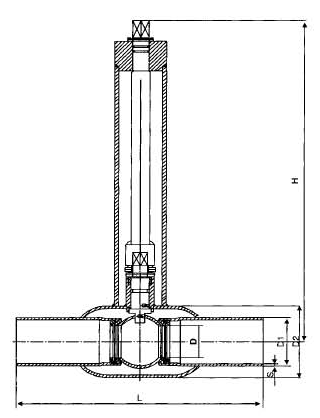

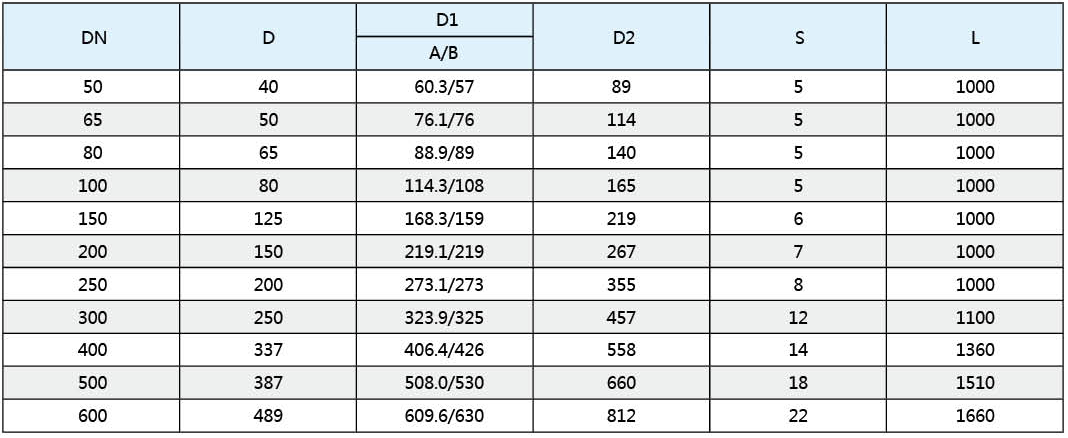

4. Main connection dimensions
