JM744X / JM644X quick-opening mud discharge valve

Product Overview:

JM744X,JM644 diaphragm type hydraulic, pneumatic quick-opening mud valve, is a kind of hydraulic source or pneumatic source actuator angle type cut-off valve. It is usually installed in rows on the outer wall of the bottom of the sedimentation tank to remove the sediment and dirt from the bottom of the tank. The valve is divided into two chambers by nylon reinforced rubber diaphragm, which is connected to hydraulic or pneumatic source, and controlled by electric or manual two-position four-way reversing valve to realize rapid mud discharge. The valve will replace the piston diaphragm, no movement friction, more suitable for mud and other granular media. Greatly improve the service life of the valve.

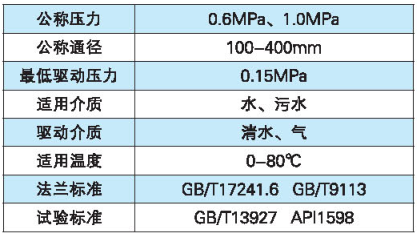

Main technical parameters

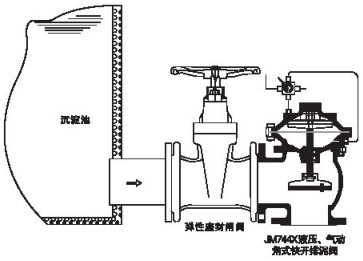

Installation Schematic



Stir-fried materials for main parts

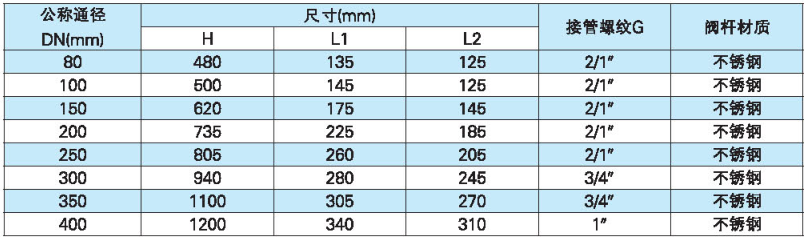

Main connection dimensions unit: mm
